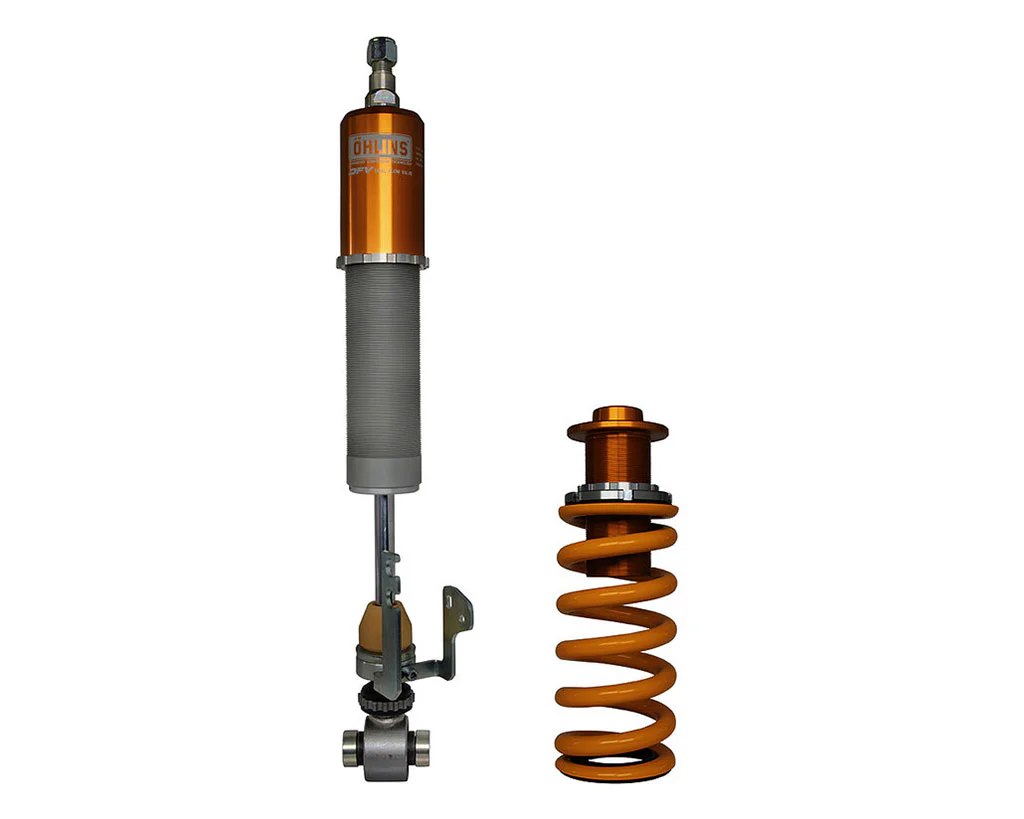

Ohlins Road & Track suspension for BMW G8x M3/M4

The Ohlins Road & Track suspension for the BMW G80 M3 and BMW G82 M4. The Road & track suspension by Ohlins, the ultimate choice for those who want to experience the best possible handling and balance on their BMW G8x M3/M4.

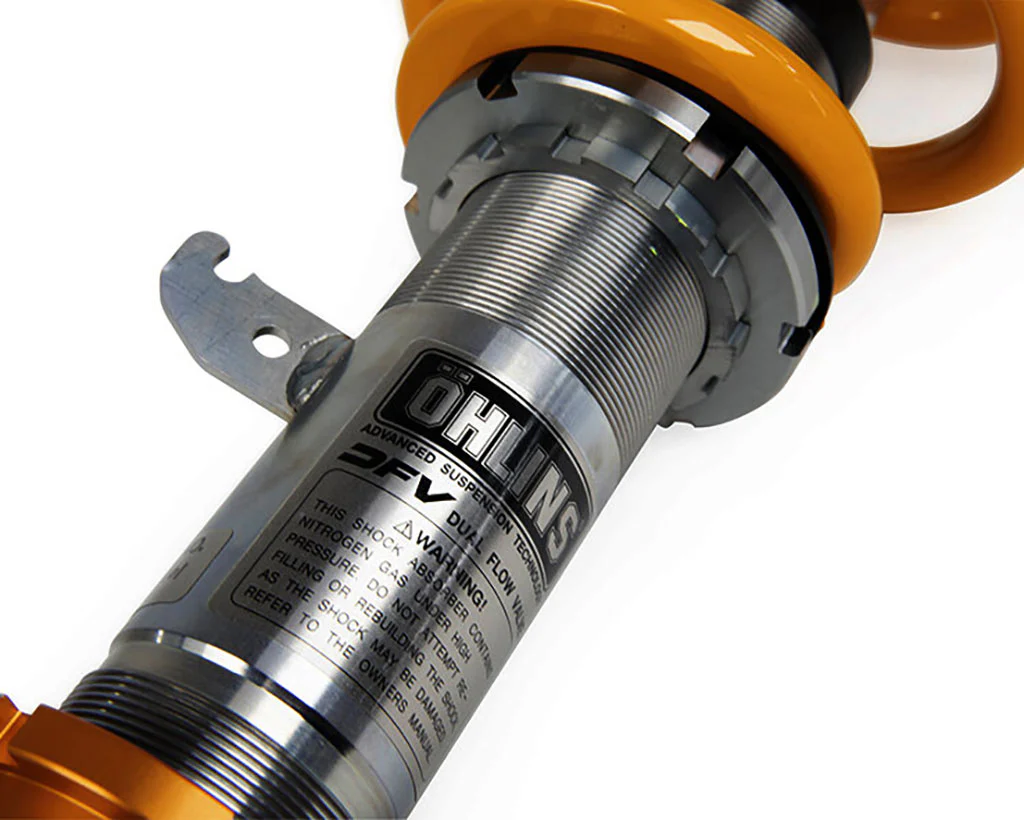

With the DFV technology which stands for Dual-Flow-Valve. A patented technology only available on Öhlins Road & Track coil over suspension. At the racetrack, the DFV gives you incredible traction but on the road, it delivers high comfort for daily transports. This coilover suspension setup therefor delivers you the utmost best of both worlds.

All the details of the Ohlins Road & Track suspension setup it listed below, the setup is available for:
Part number: BMS MW00S1
BMW G80 M3 2WD Incl. Competition and CS
BMW G81 M3 2WD Incl. Competition and CS
BMW G82 M4 2WD Incl. Competition and CS
BMW G83 M4 2WD Incl. Competition and CS

Part number:  BMS MW10S1
BMW G80 M3 xDrive Incl. Competition and CS
BMW G81 M3 xDrive Incl. Competition and CS
BMW G82 M4 xDrive Incl. Competition and CS
BMW G83 M4xDrive Incl. Competition and CS

General Features:

• Patented DFV technology (Dual Flow Valve)
• Individual height adjustment
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year warranty
• Approx. 10 kgs less weight compared to standard suspension

Features Front:

• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate length adjustment
• Approx. 25 mm lower than standard with recommended setup, you can go lower.
• Spring rate 100 N/mm
• Use with original top mounts

Features Rear:

• Conventional shock absorber
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate length adjustment
• Approx. 20 mm lower than standard with recommended setup, you can go lower.
• Spring rate 190 N/mm
• Use with original top mounts

Purchased Parts Package:

• Coil over kit incl. springs and mounting parts
• C-Spanner (for spring preload adjustment)
• Owners manual and mounting instruction
• Sticker set
